Finalmente riesco a trovare un Commodore 116 ad un prezzo decente, si ok, senza scatola, alimentatore e cavi ma funzionerà? …
Guardate il video se non volete leggervi l’articolo 🙂 e iscrivetevi al canale !!

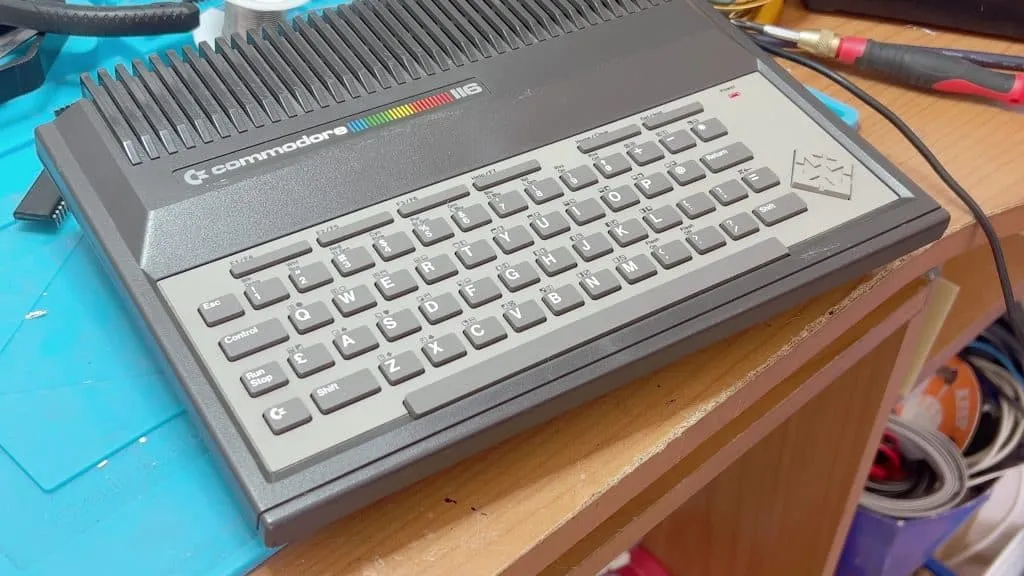

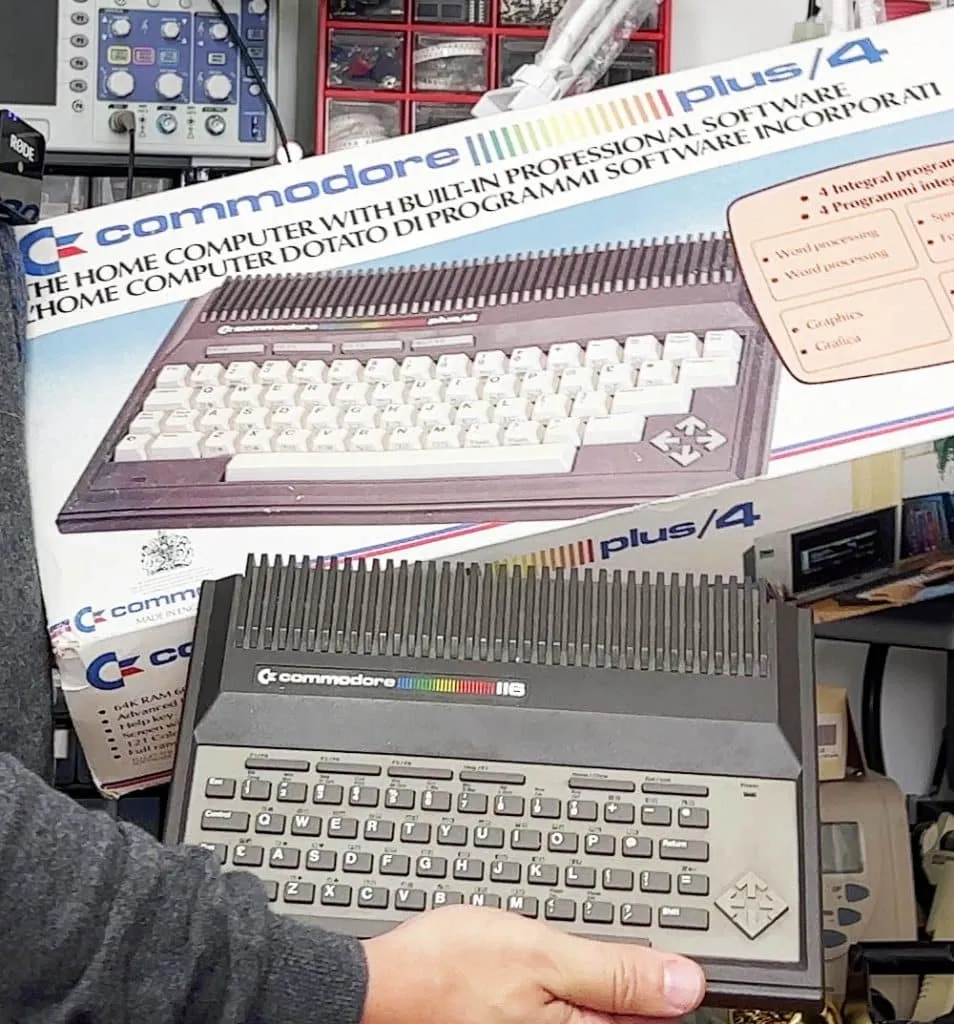

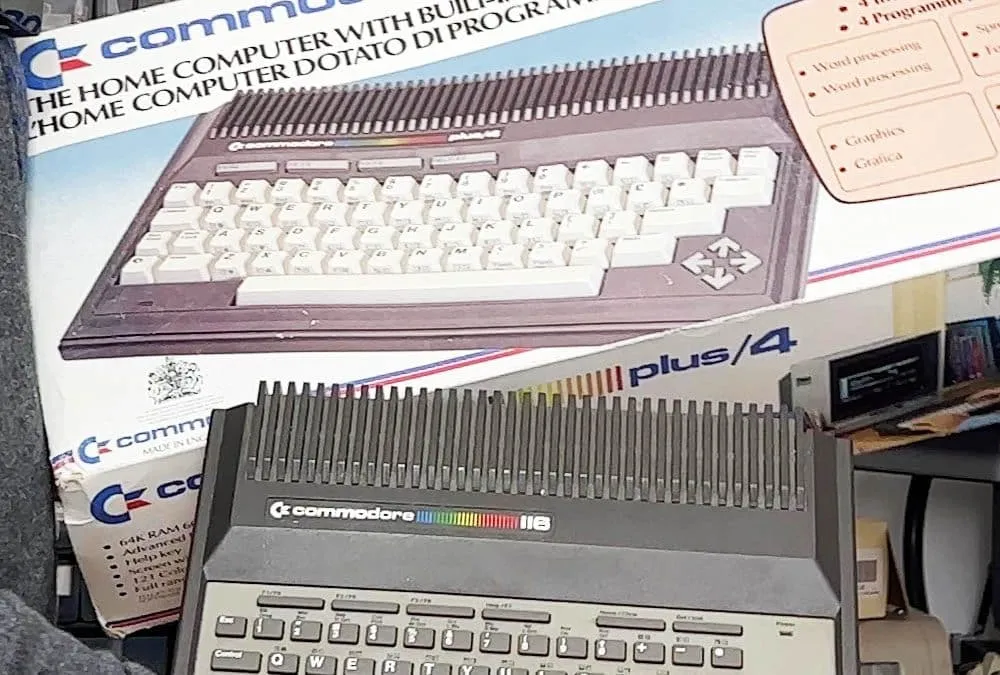

Esteticamente non è messo male, giusto una pulita alle plastiche e tornerà nuovo!. Qui lo vediamo paragonato con il plus/4.

Ma cos‘è il C116?

Il Commodore 116 è una variante economica del C16, infatti rispetto al fratello ha una tastiera in gomma molto più scomoda per scrivere ed è stato prodotto solo per il mercato tedesco dal 1984 al ’86. Anche questo modello non ha avuto molto successo sia per la scomodità della tastiera che come per tutta la serie 264 che non è stata ne compatibile ne brillante.
La serie 264?  si questa serie è composta dal C16 il C116 ed il plus4.. computer a basso costo, con un ridotto numero di chip, memoria ottimizzata e una palette di colori di 256. Il grosso problema di questa serie è l’incompatibilità con i suoi predecessori come il C64 e Vic20, non solo con il software ma con tutto l’hardware.
Per essere così economici, hanno ridotto il numero di chip e a gestire tutto troviamo la CPU (7501 o 8501) e il TED (8370), quest’ultimo gestisce audio e video.. un tutto fare di discreto livello, anche se gestisce più colori, non ha il supporto per gli sprite e questo pesa sul processore per la grafica.
Un’altra cosa da dire è che la loro costruzione economica non si è limitata solo alla riduzione dei chip ma anche alla loro costruzione e infatti oggi troviamo molte CPU e TED non funzionati.

Passiamo ora al test

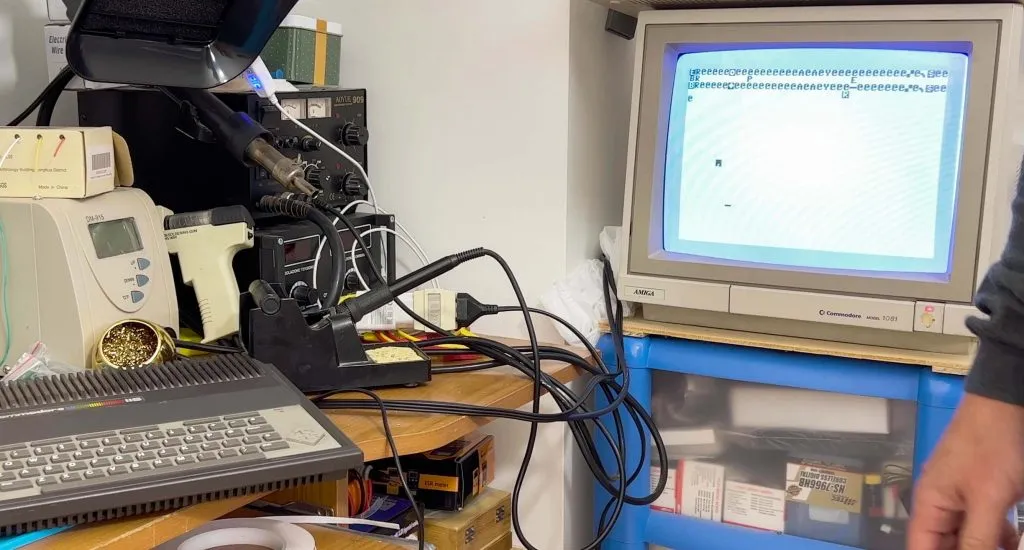

Appena acceso è comparsa la schermata del basic.. siii che cu…o !! beh non diciamolo troppo in fretta, infatti i tasti non funzionano e il computer sembra freezato anche se il cursore lampeggia. Spengnendo e riaccendendo è sempre peggio…
Caratteri strani o addirittura schermo senza nulla ed in fine schermo nero.. @#!.



Beh, era troppo bello avere preso una macchina così delicati in ottime condizioni e pure funzionante 🙂
Ora via al debug, ma c’è poco da verificare, 2 ram e i 2 maledetti chip. Visto che ho anche il C16 provo subito i chip incriminati ed ecco i risultati

TED 1 CPU 0

Il processore è defunto, appena sostituito con quello del C16 tutto ha funzionato senza problemi. Ed ecco la mia piccola casistica di questi modelli:
CPU Morte 3/5
60%
TED Morti 1/5
20%

E ora che si fa?

Beh la CPU è la più costosa da reperire e il problema si può ripresentare visto la sua età e fattura.
E’ possibile sostituire il processore 7501 con il 6510 usato ne C64 ma occorrerà adattare i pin e soprattutto cambiare il Kernal con delle nuove istruzioni per gestire le differenze hardware su questo computer. Questa non è una bellissima soluzione perché anche con la ROM con istruzioni aggiunte il computer non sarà pienamente funzionante, la vecchia CPU controllava anche il motore datassette cosa che il 6510 non fa e aveva all’interno degli op code non ufficialmente dichiarati ma che i programmatori hanno usato per risparmiare cicli di codice e che non esistono sulla cpu del 64.
L’alternativa è prendere un processore emulato in FPGA oppure una scheda che oltre la cpu utilizza queste istruzioni in più.
Io per ora l’ho sostituito con uno originale visto che in questo momento con la crisi dei semiconduttori non è disponibile l’opzione in FPGA e che purtroppo si trova solo in Inghilterra e ciò vuol dire anche dogana!.

Qui trovate i nuovi sostituti per la cpu:

https://lotharek.pl/productdetail.php?id=257

https://www.sellmyretro.com/offer/details/mos–7501~~8501-cpu-replacement-for-c16~~116~~%2B4-30475
